- Certyfikat ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db.
- Praca w strefie zagrożenia wybuchem: 1, 2, 21, 22.
- Profibus, CANopen, DeviceNet, Powerlink, EtherCAT, Profinet, Modbus TCP/IP. Ethernet/IP.
- Wyjście SSI lub równoległe.
- Programowalne wyjście analogowe
- CE, RoHS.
Opis

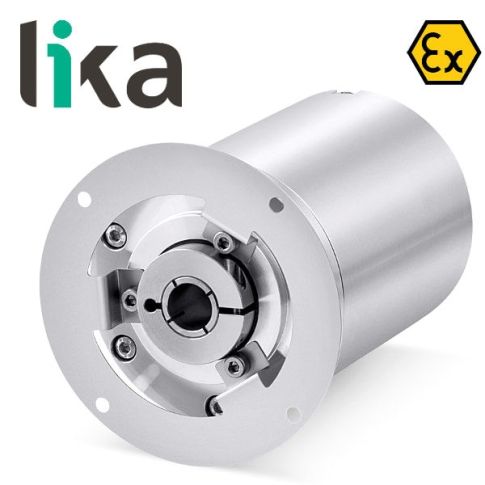

Enkoder absolutny XAC77 - parametry:
- Certyfikat ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db.
- Praca w strefie zagrożenia wybuchem: 1, 2, 21, 22.
- Profibus, CANopen, DeviceNet, Powerlink, EtherCAT, Profinet, Modbus TCP/IP. Ethernet/IP.
- Wyjście SSI lub równoległe.
- Programowalne wyjście analogowe
Średnica obudowy | Ø 77 mm |
Średnica otworu | Ø 14 mm |
Rozdzielczość | SSI / wyj. równoległe: 8192 stanów lub 8192 stanów na 4096 obrotów maks. Wyjście analogowe: 12 bitów lub 13 x 14 bitów Profibus, CANopen, DeviceNet: 262144 stanów lub 65536 stanów x 16384 obrotów Profinet, EtherCAT, Powerlink, Ethernet/IP, Modbus TCP/IP: 262144 stanów lub 65536 stanów x 16384 obrotów |
Obwody wyjściowe | SSI (RS422), NPN, Push Pull, Profibus-DP, CANopen, DeviceNet, Profinet, EtherCAT, Powerlink, Ethernet/IP, Modbus TCP/IP Wyjśćie analogowe (programowalne): 0-5V, 0-10V, -5/+5V, -10/+10V, 4-20mA, 0-24mA |
Temperatura pracy | -25°C - +85°C |
Stopień ochrony | IP65 maks. |

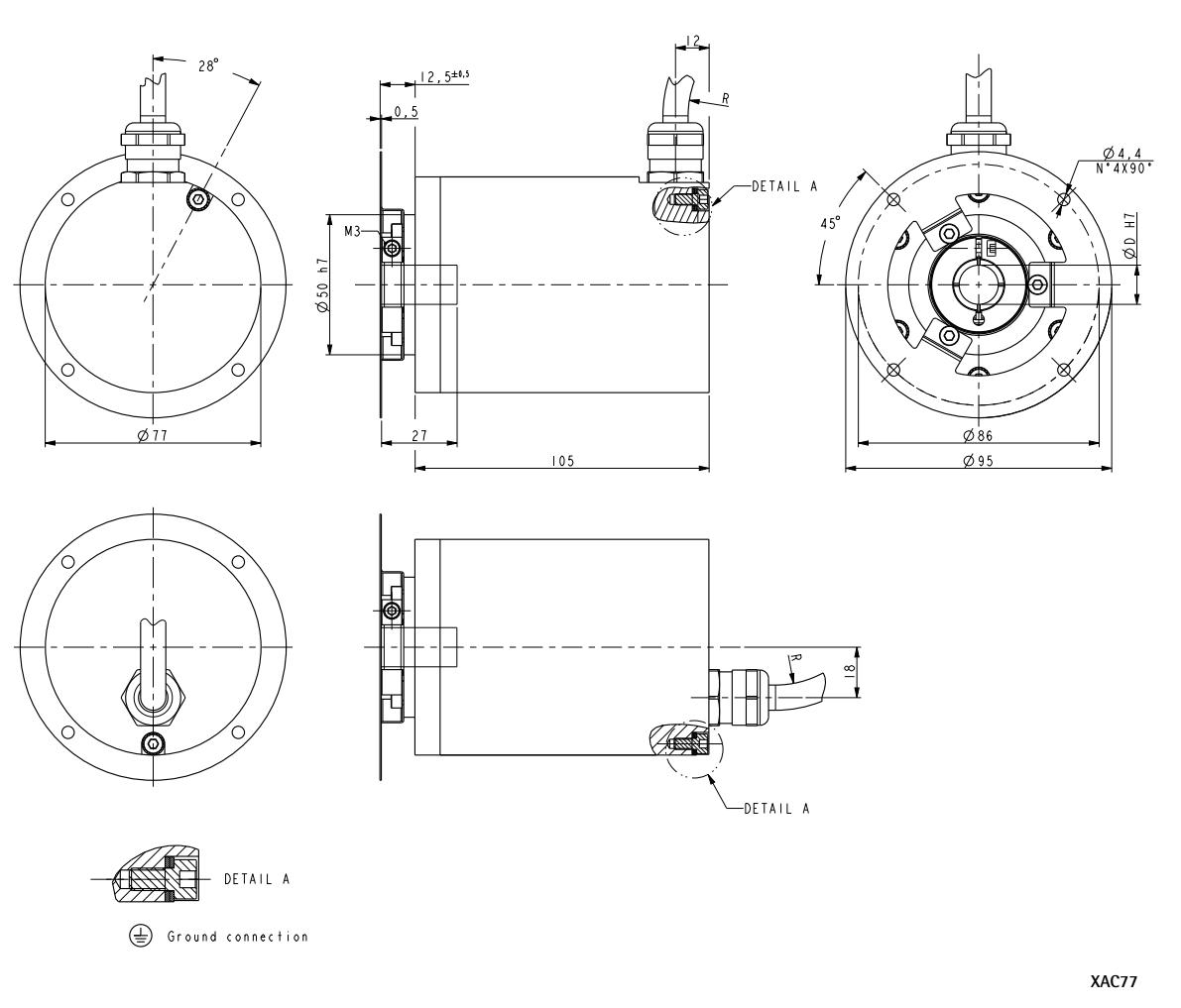

Enkoder absolutny XAC77 - wymiary:

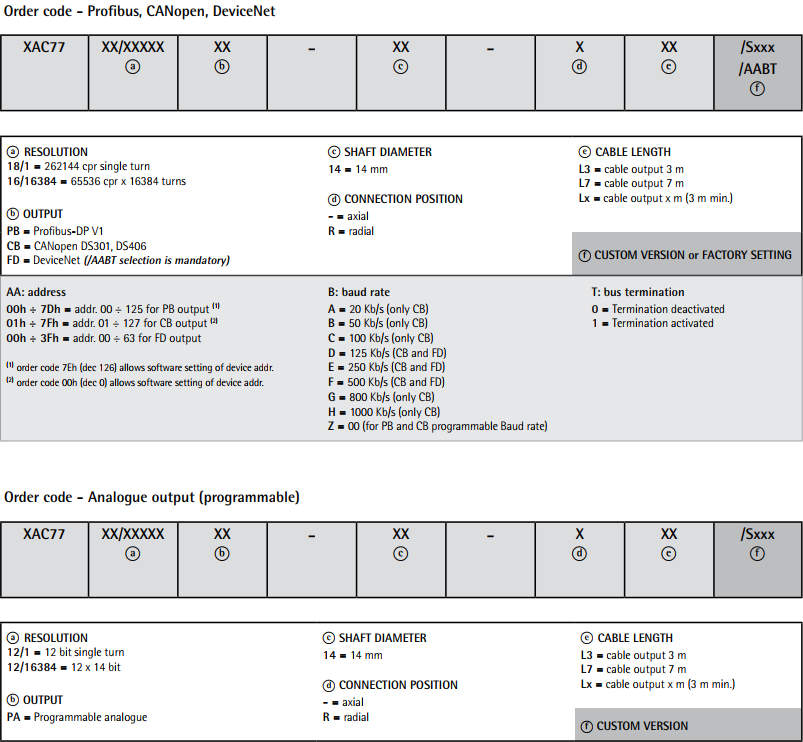

Enkoder absolutny XAC77 - kod zamówieniowy:
